Swedish Marine - Refrigeration, Heating, Electrical

#C3002-12

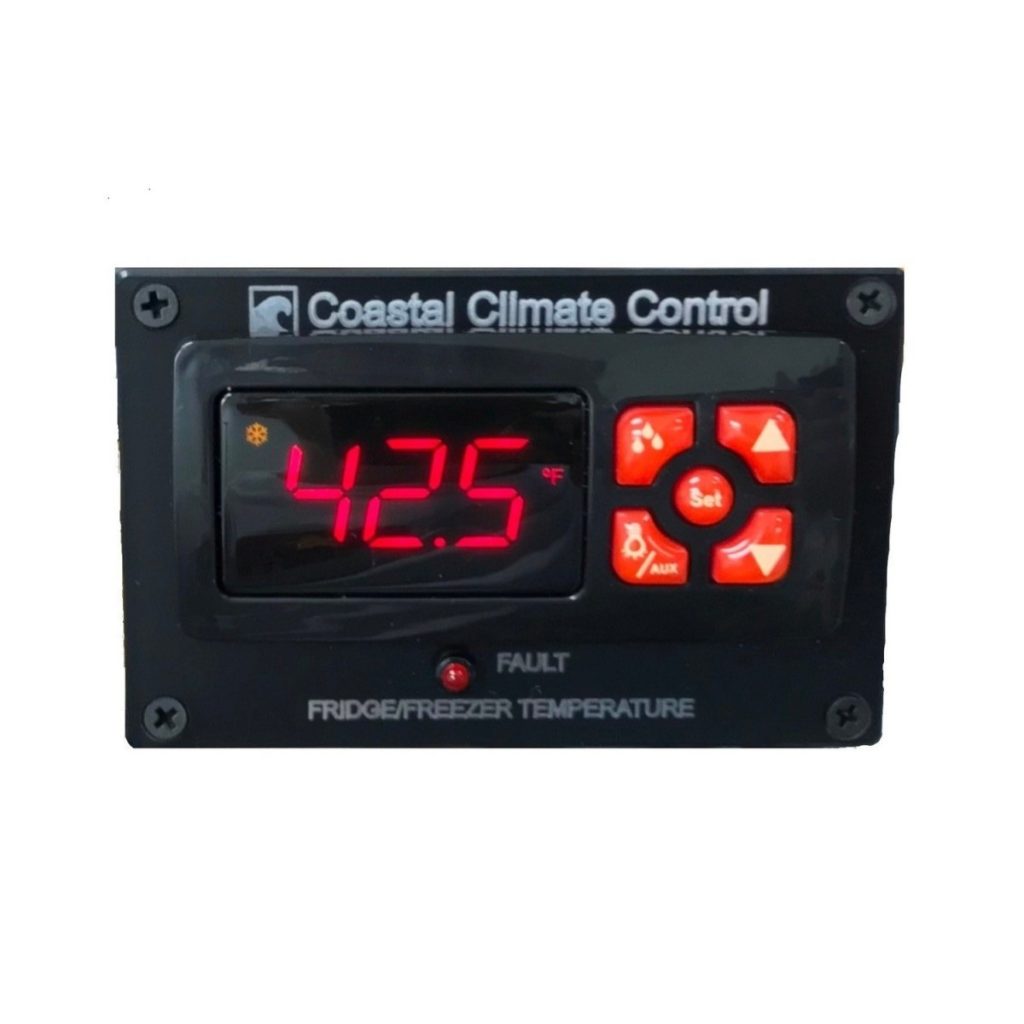

The Coastal MKII Thermostat Thermometer is being replace with the Coastal MK3. Nothing has changed, but something has been added.

The Coastal MK3 Digital 12v Thermostat Thermometer features a compressor fault indicator LED on the faceplate. If your compressor has stopped for a fault reason, this LED will flash 1, 2, 3, 4, or 5 times, which tells you where to look for the problem. Makes troubleshooting faster and easier.

The LED display panel can be mounted conveniently where you can clearly see what your refrigerator/freezer box temperature is at any time.

This kit comes pre-wired with a fused 10′ cable of five wires, and a sensor with a 10′ lead. Both can be extended, if necessary.

Features:

• Troubleshooting LED blinks a set number of times if your compressor stops for a fault reason
• Sensor recognizes the box air temperature (as verses temperature of plate, as a mechanical thermostat does).
• Can be used for refrigerator or freezer applications.
• Simple-to-use buttons enable set-point and other parameters to be easily adjusted.
• The temperature is always on display, letting you know that your system is running normally (or not!).
• Audible alarms for high and low temperatures, as set by you, the operator.

Shipped in Fahrenheit but can be easily adjusted to read in Celsius.

Operation instructions with wiring guide

#CGUA111

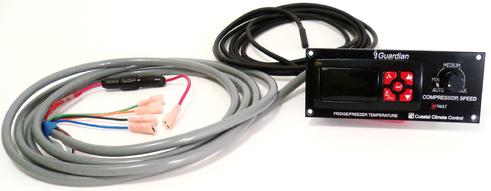

Guardian – Panel with Coastal MKII Thermostat

Coastal Climate Control’s Guardian All-in-One Controller – combines a digital thermostat and thermometer with a manual compressor speed control.

Designed to be used on any Danfoss/Secop BD35 or BD50 compressor. This model is 12v. 24v is available as a special request.

Complete with LED fault indicator light. Note: auto speed available only with Merlin upgrade (see below).

The thermostat is equipped with a buzzer to sound an alarm if the temperature exceeds the set piont by the maximum and minimum values you program in.

Easy installation as it comes completely pre-wired with a plug-and-play harness, which includes a 2amp fuse.

Optional upgrade: a Merlin mini smart speed board allowing you both manual and automatic speed control choices.

#E250500

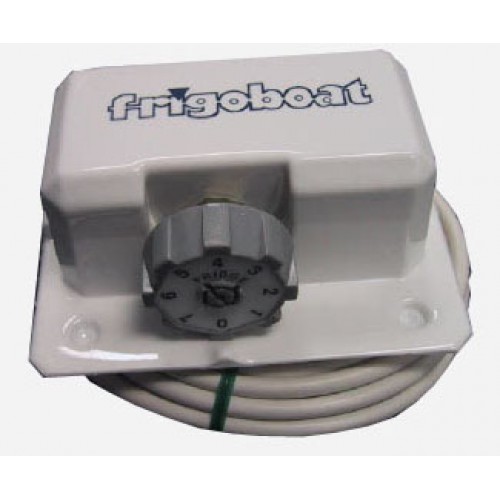

Frigoboat Mechanical Refrigeration Thermostat

Mechanical thermostat.

Sensor attaches to the evaporator plate.

Measures Refrigerator temperatures only.

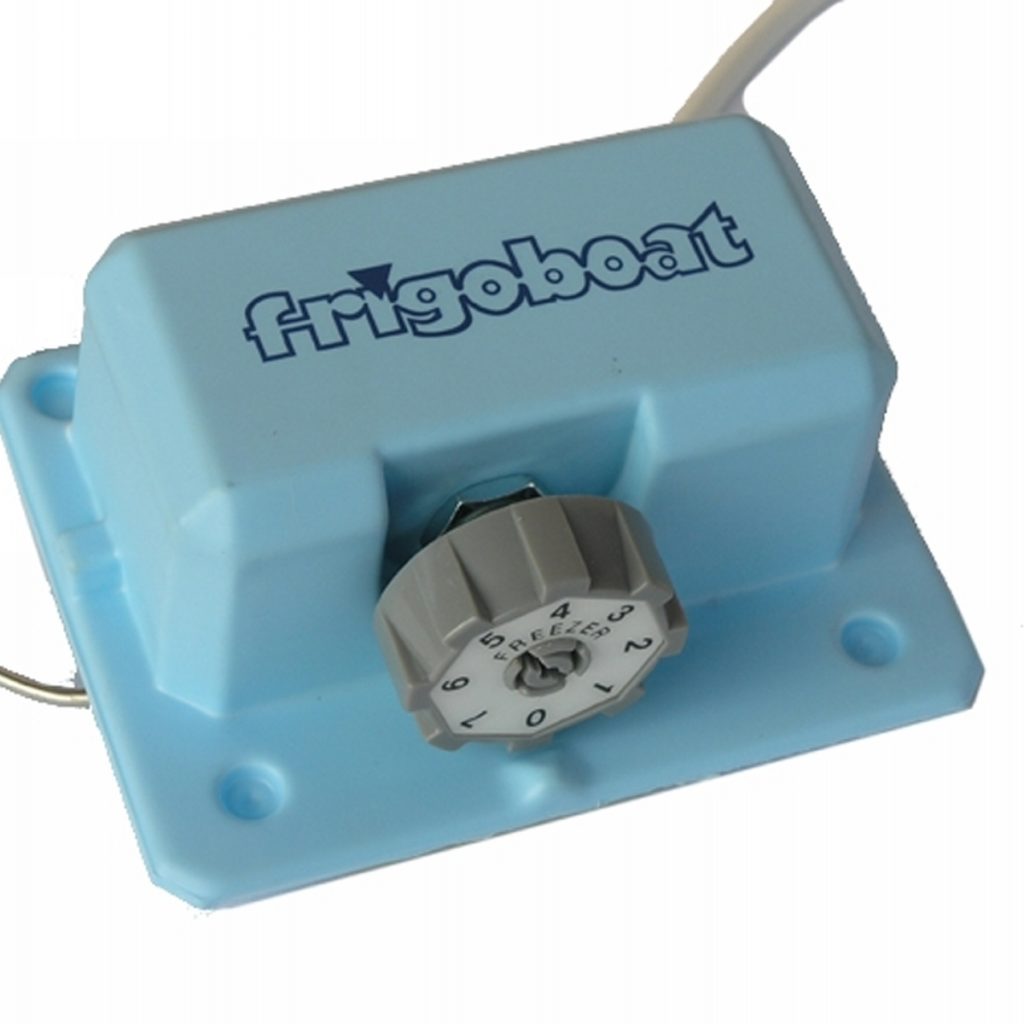

#E250700

Frigoboat

Mechanical thermostat.

Sensor attaches to the evaporator plate.

Measures Freezing temperatures only.

#E53125

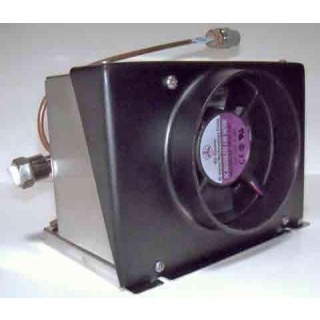

Frigoboat additional air condenser that can be added to a Frigoboat K35F, K50F, W35F or W50F water cooled compressor system.

When your boat is out of the water, but you still need refrigeration, now you can simply switch from your keel cooler or traditional pumped-water cooled condenser to your air condenser.

No need to turn the refrigerator off or haul in ice blocks.

Component comes pre-charged wtih R134a and unique Frigoboat fittings for simply plug-and-play installation.

The condenser must be mounted next to the compressor.

It measures 8.375″ long, 4.75″ deep and 5.625″ tall.

#E52152

Frigoboat

Plug and play Merlin II smart speed controller.

Merlin II is a small circuit board that plugs onto the controller of your Danfoss/ BD35 or BD50 compressor to control the compressor speed automatically!

Includes a green LED that blinks to show at what speed the compressor is running and a red LED that blinks one to five times to tell you were to troubleshoot should your compressor stop for a fault reason.

Merlin II gives you big energy savings while also protecting your system’s electronics and reduces stress on various components.

#E26200

Frigoboat Spillover Fan/Thermostat kit, Mechanical.

Fan and thermostat assembly for spillover applications.

Install in the barrier between the fridge and freezer sides of your ice box(s).

The thermostat in this unit operates the fan independently from compressor to draw cold air into the fridge from the freezer side.

Maintains even temperature in the fridge section, which prolongs safe food storage time.

#C3030-12

Frigoboat Spillover Fan Thermostat Kit/Digital.

Fan, thermostat assembly for spillover applications.

Thermostat-controlled 2″ fan, installed in the barrier between the fridge and freezer sides of an icebox.

The digital thermostat in this unit operates the fan independently from the freezer compressor to draw cold air into the fridge from the freezer side.

This digital thermometer allows you to monitor refrigerator temperature at all times, without having to open the box lid.
