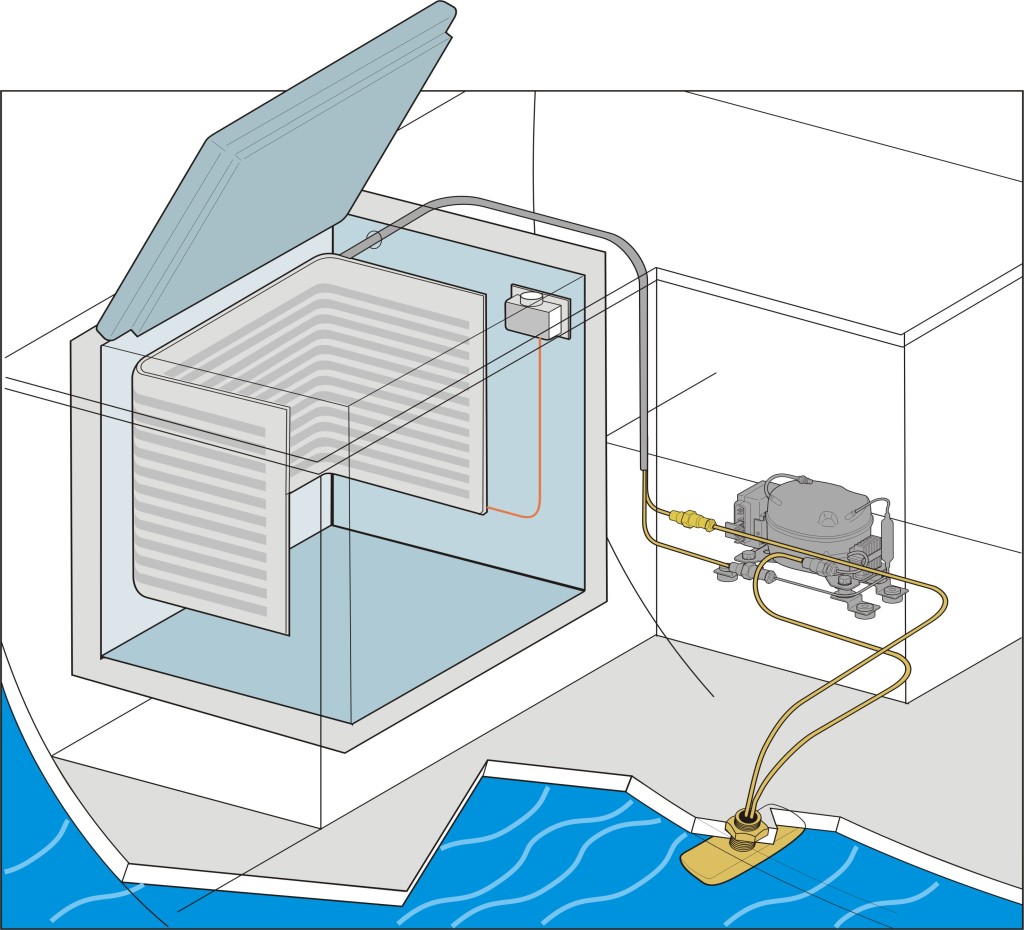

Frigoboat Keel Cooler System
FRIGOBOAT KEEL COOLER SYSTEMS
Water cooling with keel cooler saves more than 30% compared to air cooling.
Keel cooler eliminates the need of independent sea water pump.
Danfoss BD50 compressor with electrical consumption 50% lower than earlier compressor concepts.
Extremely compact dimensions.
Maximum efficiency.
Precharged system equipped with Frigoboat self sealing couplings.
Configuration with evaporators for fridges up to 15 cu.ft. and freezers up to 5 cu.ft.
Automatically runs with 12 or 24 Volts.
Automatic battery protection.
NO PUMP, NO FAN, NO NOISE!!!
Keel Cooler are available with either Thread ( E 50361 ) or Stud ( E 50722 ) mounts.
Also available with zincs: Thread (E503161Z) Stud (E50722Z) (Zinc is not required on boats with bonding systems)
Constructed in marine grade bronze and cupro-nickel.

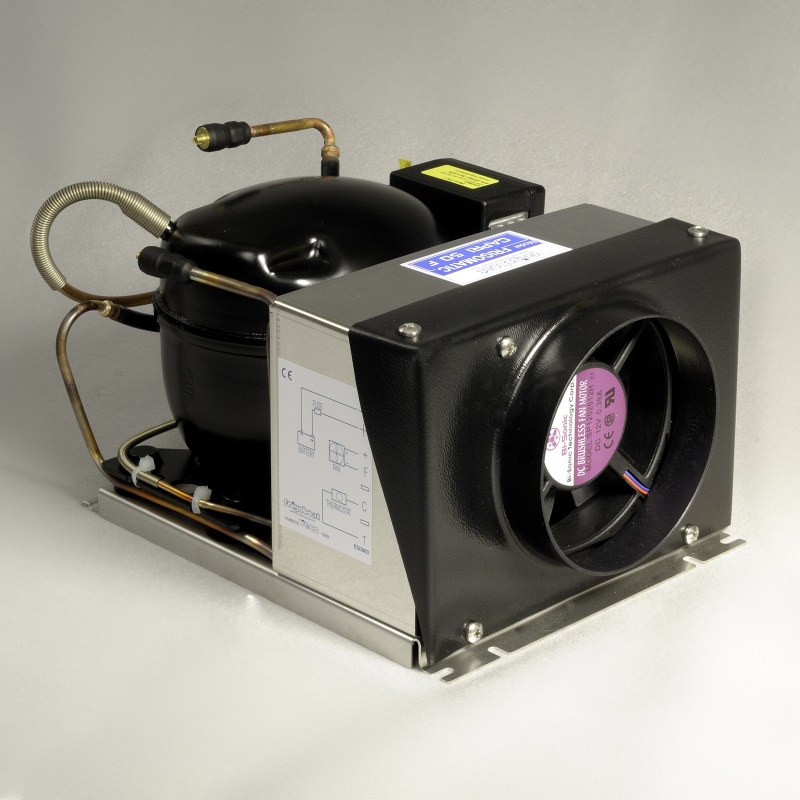

Frigoboat Air Cooled Capri 50F Compressor
# E52120NA
Frigoboat Capri 50F
Air cooled Frigoboat Capri 50F 12/24 V Compressor with manual speed board
Secop compressor of the latest generation
Extremely compact dimensions.
Maximum efficiency
Secop BD50 compressor with electrical consumption 25% lower than earlier compressor concepts.
Forced air cooling
Precharged system with Frigoboat self sealing couplings.
Configurations with evaporators for fridges up to 15 cu.ft and freezer up to 5 cu.ft.
Automatically runs on 12 or 24 volts.
Automatic battery protection.
Equipped with stainless steel fan shroud & reversible fan to allow warmed air to be exhausted or cooler air to be drawn in.

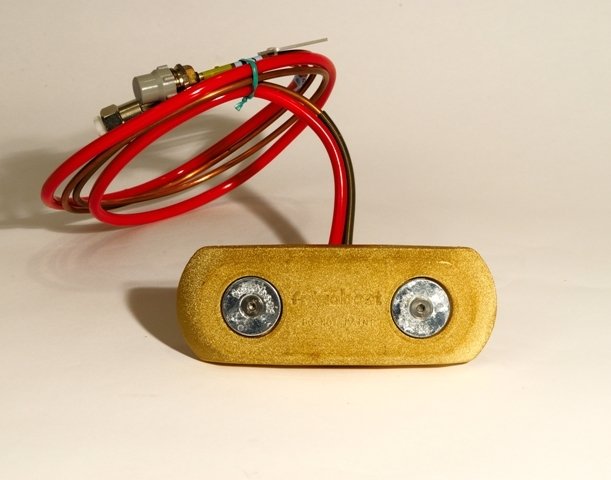

Frigoboat Keel Cooler with zinc
# E50361Z
Frigoboat Thread Keel Cooler with Zinc.
Frigoboat Keel Cooler fitting Thread Mount. Similar to a regular thru-hull fitting, where the throat passes through the hull, and a nut is threaded onto the shaft and tightened.
The keel-cooler must be mounted within 5′ of the compressor.
A Frigoboat keel-cooler acts as the condenser for the system. The R134a refrigerant is circulated by the compressor, down through tubing in-bedded in the sintered bronze mounted on your hull. This is where the heat exchange takes place, removing the heat completely from the refrigerant and not into vessel.
NO PUMP! NO FAN! NO NOISE!!!
Choose either the model with zincs (E50361Z) or, if you can connect the keel cooler into your bonding system, choose the model without zincs (50361).

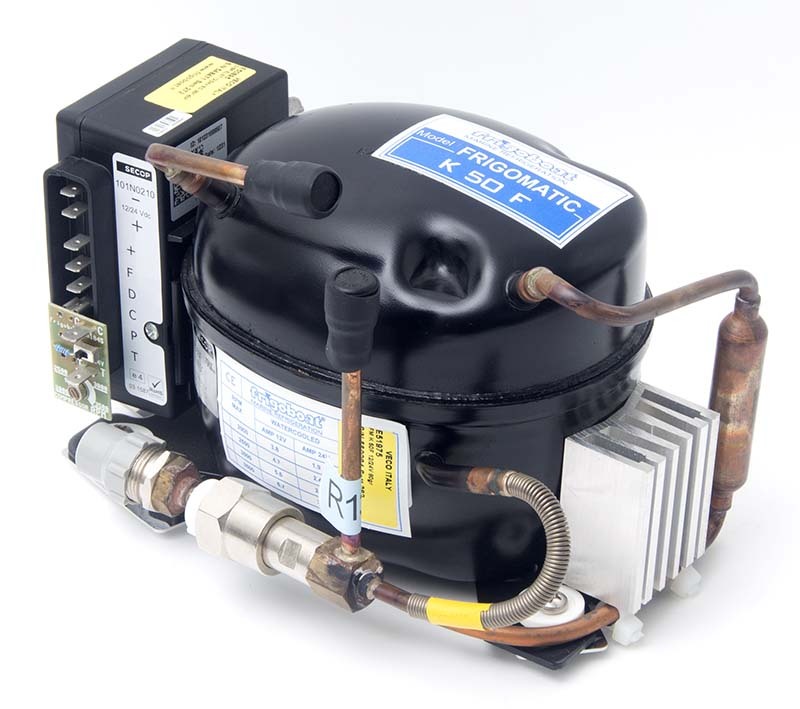

Frigoboat K50F Compressor
# E51975
Frigoboat K50F compressor with manual speed board.
Water cooling with keel cooler saves more than 30% compared to air cooling.
Keel cooler eliminates the need of independent sea water pump.
Secop BD50 compressor with electrical consumption 50% lower than earlier compressor concepts.
Extremely compact dimensions.
Maximum efficiency.
Precharged system equipped with Frigoboat self sealing couplings.
Configuration with evaporators for fridges up to 15 cu.ft. and freezers up to 5 cu.ft.
Automatically runs with 12 or 24 Volts.
Automatic battery protection.
NO PUMP, NO FAN, NO NOISE!!!

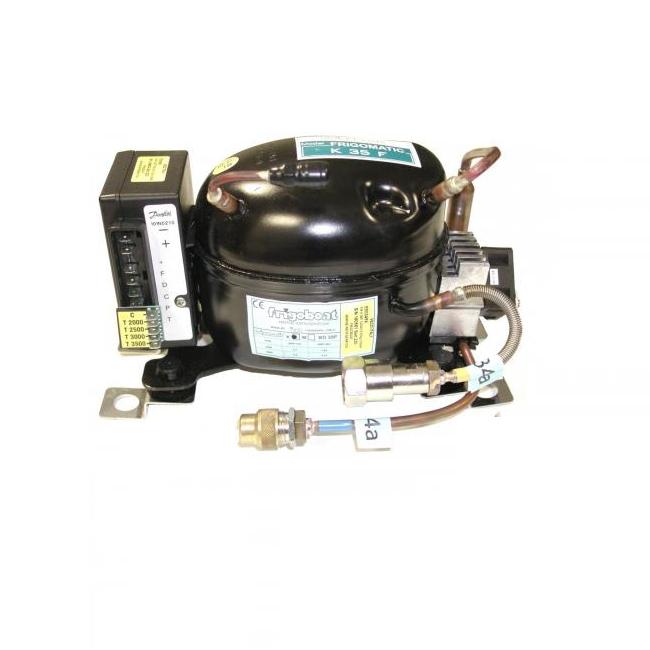

Frigoboat K35F Compressor
# E50345X
Frigoboat K35F compressor with manual speed board.
Water cooling with keel cooler saves more than 30% compared to air cooling.
Keel cooler eliminates the need of independent sea water pump.
Secop BD50 compressor with electrical consumption 50% lower than earlier compressor concepts.
Extremely compact dimensions.
Maximum efficiency.
Precharged system equipped with Frigoboat self sealing couplings.
Configuration with evaporators for fridges up to 15 cu.ft. and freezers up to 5 cu.ft.
Automatically runs with 12 or 24 Volts.
Automatic battery protection.
NO PUMP, NO FAN, NO NOISE!!!
Frigoboat Keel Cooler No zincs
# E50361
Frigoboat Thread Keel Cooler with NO ZINCS!
Frigoboat Keel Cooler fitting Thread Mount. Similar to a regular thru-hull fitting, where the throat passes through the hull, and a nut is threaded onto the shaft and tightened.
The keel-cooler must be mounted within 5′ of the compressor.
A Frigoboat keel-cooler acts as the condenser for the system. The R134a refrigerant is circulated by the compressor, down through tubing in-bedded in the sintered bronze mounted on your hull. This is where the heat exchange takes place, removing the heat completely from the refrigerant and not into vessel.
NO PUMP! NO FAN! NO NOISE!!!
Choose either the model with zincs (E50361Z) or, if you can connect the keel cooler into your bonding system, choose the model without zincs (50361).
Frigoboat Flat Evaporator 200F
#E50075
Frigoboat All aluminum, Bendable Evaporator 200F
Well suited for refrigerator boxes of 10-18 cubic feet or freezer boxes of 5-8 cubic feet.
These measurements based on the box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
This plate can be easily bent to fit into your box. Instructions provided.
Dimensions 42″w x 10.5″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

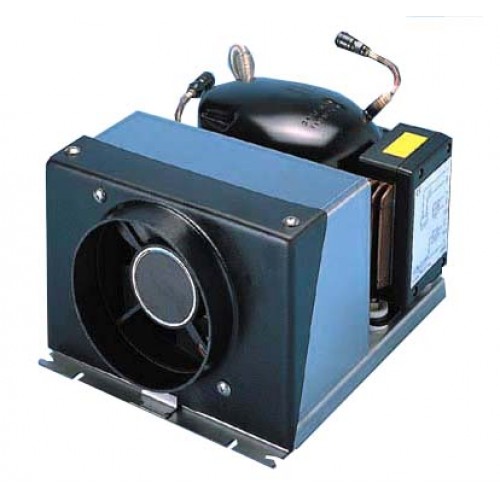

Frigoboat Air Cooled Compressor Capri 35F
# E51430
Frigoboat Capri 35F
Air cooled Frigoboat Capri 35F 12/24 V Compressor with manual speed board
Frigoboat Capri 35F compressor/condenser with a standard control module and manual compressor speed selection board.
Danfoss/Secop BD35 compressors are multiple speed, so Frigoboat allows you to choose the most efficient rpm to run your compressor at to get the job done.
Run it fast to bring the box temperature down quickly; run it slower to maintain your box’s set point. Save on energy!
The Capri 35F works well for a refrigerator box up to 7 cu ft or a freezer box up to 4 cu ft. This is based on a box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
Automatically runs on 12 or 24 volts.
Automatic battery protection.
Equipped with stainless steel fan shroud & reversible fan to allow warmed air to be exhausted or cooler air to be drawn in.
