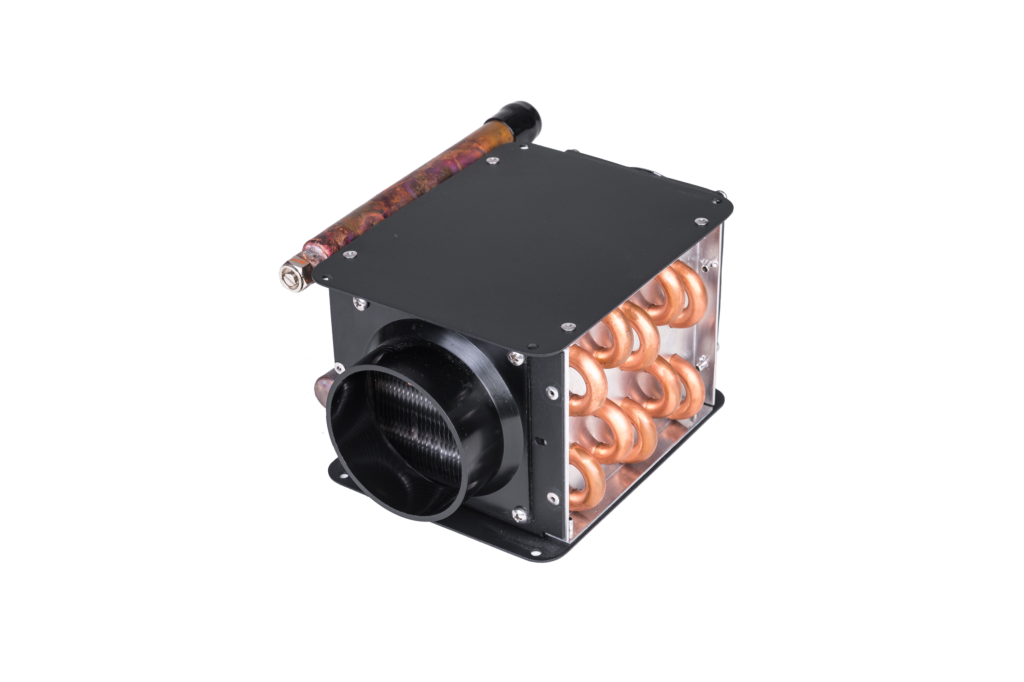

MSR 005-302 Fan Heater
#005-302 Fan Heater
MSR Fan Heater 3,500 BTU @ 180F 3 GPM Flow
Designed specifically for heating of a small compartment similar to a marine head compartment or small stateroom.
3″ ducting and air outlet grill can be extended into those tight locations on a boat.
Built-in air bleed vent and standard 3/4″ hose barb connections.
Optional two speed switch is available.
Complete with heater, ducting, clamps and air grill.
Height: 4.125″
Width: 6″
Depth: 8″
12 or 24V Models Available
Low amperage or high capacity defrost fan 12VDC or 24VDC

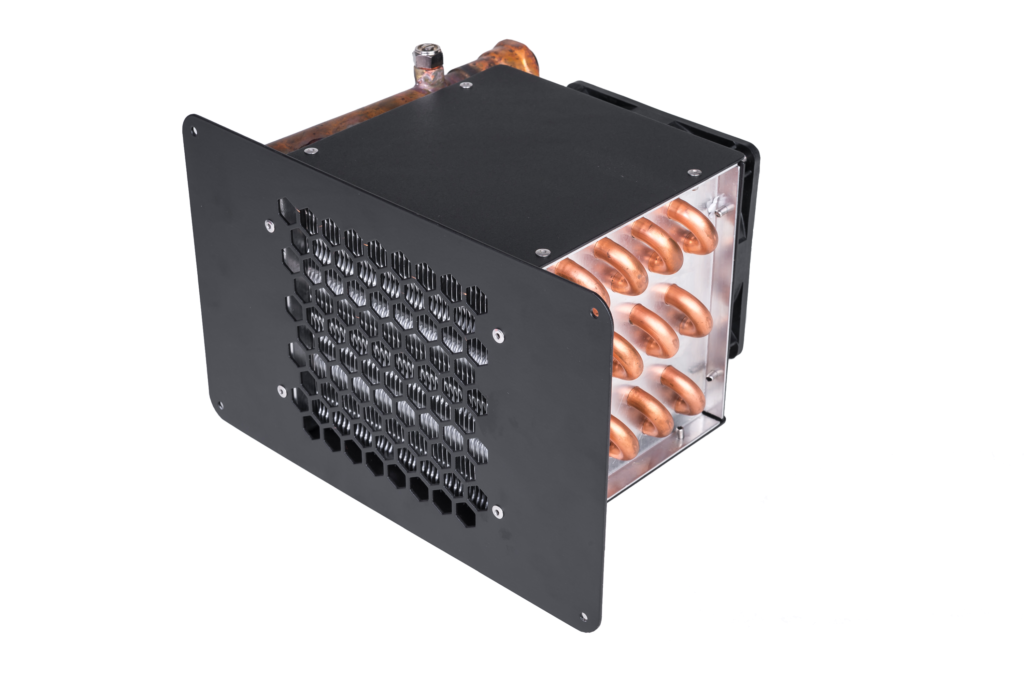

MSR Fan Heater 005-903
#005-903 Fan Heater
MSR Model 8,000 BTU @ 180F 3 GPM Flow
Picture frame surface mount model for mounting on the face of a cabinet or compartment.
Simple 5” ×7″ approximate wood cut out for mounting.
Black powder coat grill with standard built-in air vent fitting.
Standard 3/4″ FPT connections.
Optional two speed control switch is available.
Height: 6.63”
Width: 9.38”
Depth: 7.88”
12 or 24V Models Available
Low amperage or high capacity defrost fan 12VDC or 24VDC

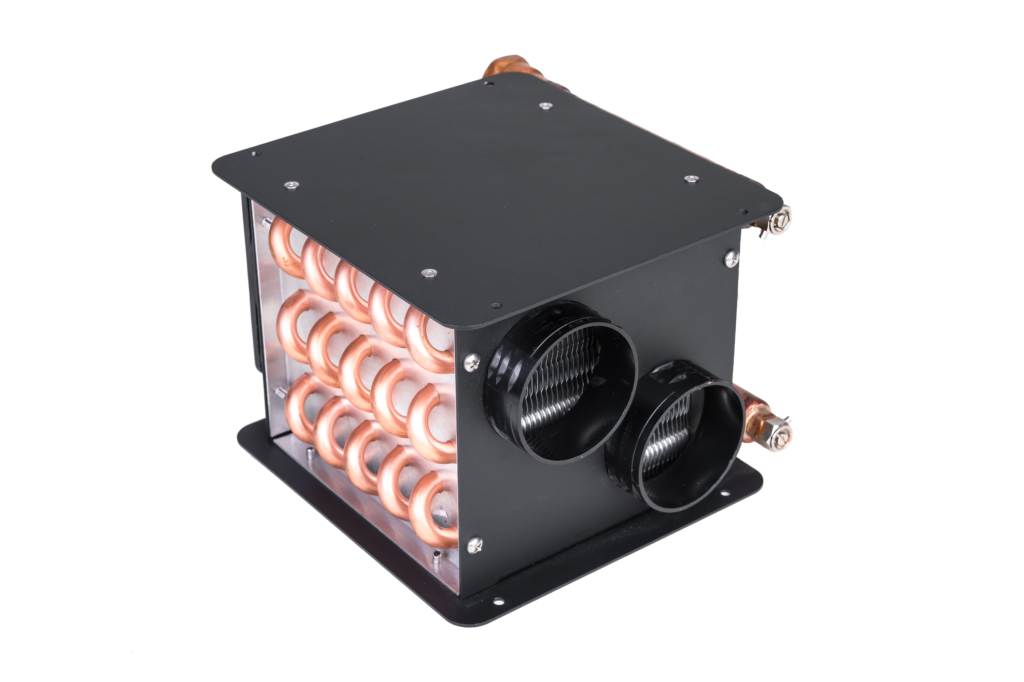

MSR Fan Heater 005-905
#005-905 Fan Heater
MSR Model 8,000 BTU @ 180F 3 GPM Flow
Dual 2.5” air outlets allow heating of two adjacent small staterooms or stateroom and marine head compartment.
The 2.5” flexible ducting can be extended into and past those small access openings.
The two air flow adjustable air grills allows heating balance at a touch of the air flow louver.
Built-in air bleed vent and standard 3/4” FPT connections.
Optional two speed switch is available.
Complete with heater, ducting, clamps and air grills.
FF features allows multiple heater position for ducting and hose routing.
Height: 5.75”
Width: 7”
Depth: 8.5”
12 or 24V Models Available
Low amperage or high capacity defrost fan 12VDC or 24VDC

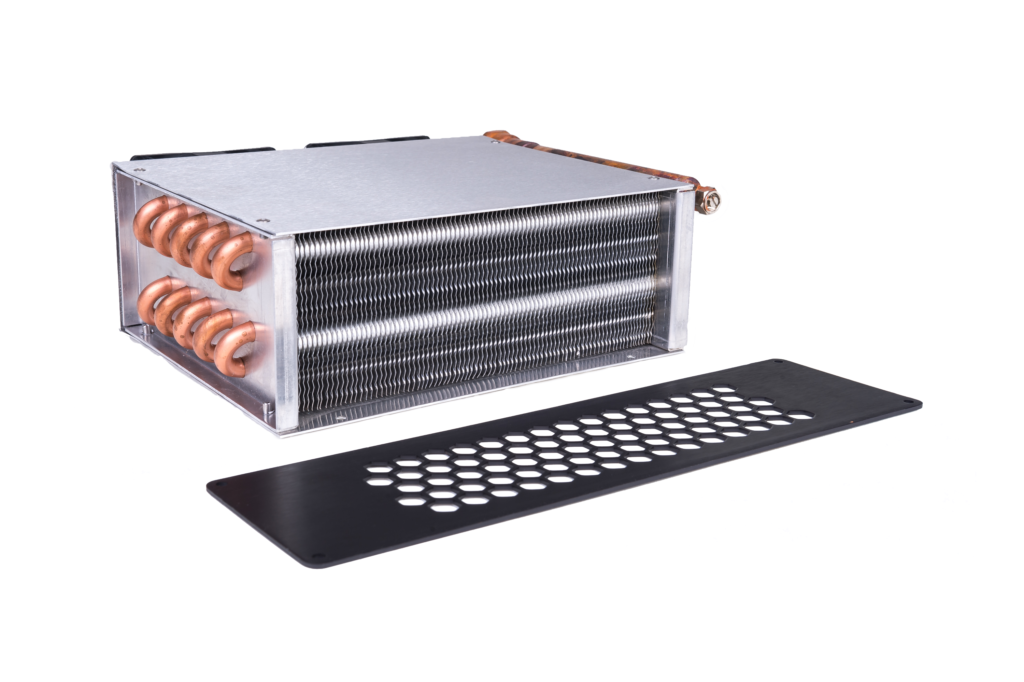

MSR Fan Heater 005-909II
#005-909II
MSR Model Cabinet Toe Space Mounting Fan Heater
Five pass water coil for 7,000 BTU rating.
Black anodized aluminum cutout cover air grill.
Low profile (3.75”) allows installation in a cabinets toe space or other low profile location.
Ideal heater for galley space installation for “Warm Feet” for the first mate for morning coffee or meal preparation.
Heater can also be mounted vertical in narrow unused spaces.
Standard 3/4″ FPT connections.
Height: 3.75″
Width: 11.75″
Depth: 9″
12 or 24V Models Available

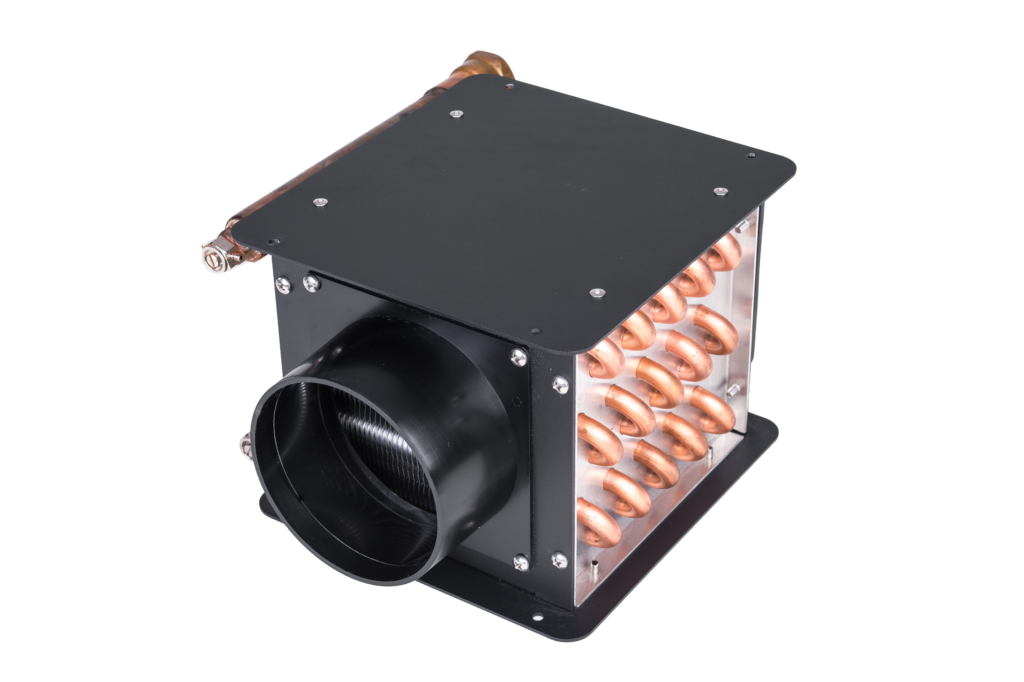

MSR Fan Heater 005-914
#005-914
MSR Fan Heater Model 8,000 BTU @ 180F 3 GPM Flow
This 4”duct and air grill equipped heater provides quiet even heat in the sleeping area and other areas.
In field air flow direction change is possible.
Remove four screws on the front and back reverse the motor and air outlet and the front will become the back with air flow in the opposite direction.
No need for 180 degree duct routing to get the air pointed in the right directions.
Standard 3/4″ FPT connections.
Optional two speed switch is available.
Height: 5.75”
Width: 7”
Depth: 8.5”
12 or 24V Models Available
Low amperage or high capacity defrost fan 12VDC or 24VDC

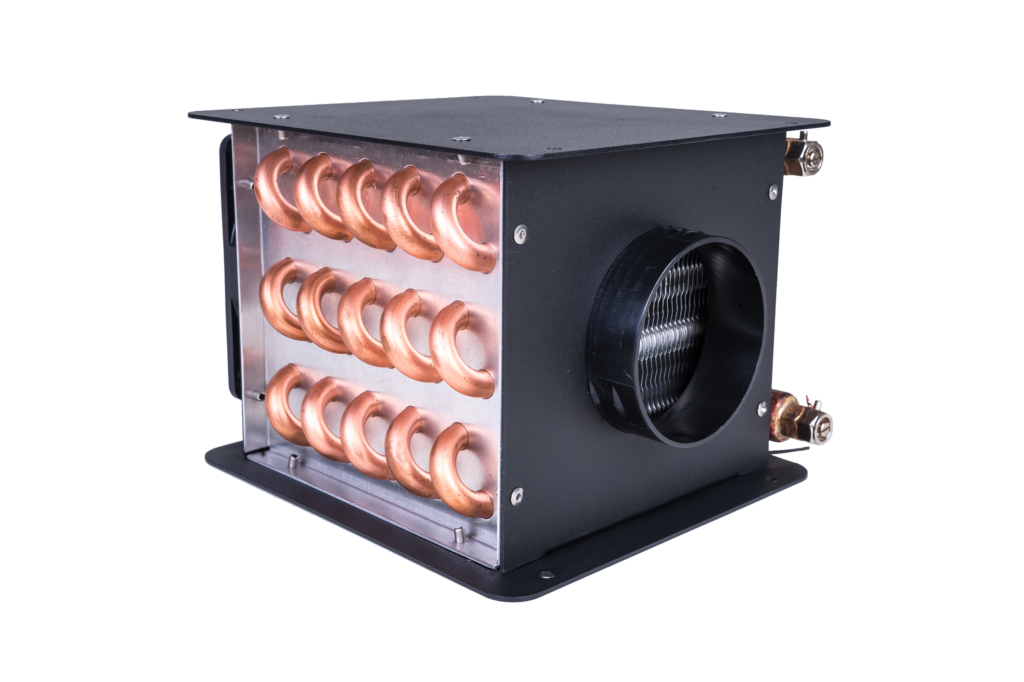

MSR Fan Heater 005-919
#005-919
MSR Fan Heater Model 8,000 BTU @ 180F 3 GPM Flow
This heater equipped with 3” duct and air grill will fit into those location where the 4” ducting cannot fit.
Similar equipped as the Models 005-905FF and 914FF for in-field fan motor and air outlet air swap.
These FF Models can also be rotated 180 degrees, so the top becomes the bottom for water hose routing without the need for hose cross over.
Dual air vent fittings allow this feature.
The Models 905FF, 914FF and 919FF are all equipped with a five pass water coil for superior water flow and heat output.
Standard 3/4″ FPT connections.
Height: 5.75”
Width: 7”
Depth: 8.5”
12 or 24V Models Available
Low amperage or high capacity defrost fan 12VDC or 24VDC

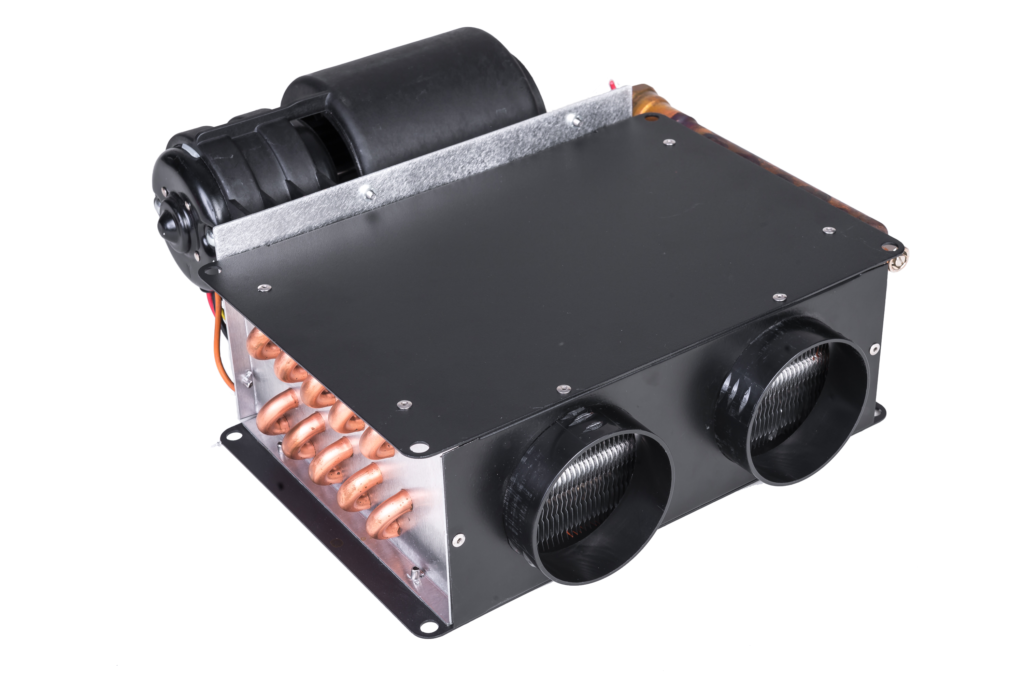

MSR Fan Heater 005-922
#005-922
MSR Model Fan Heater.
Two duct outlet fan heater. 3/4″ hose connections.
Three speed motor.
Available in 2.5″ or 3″ duct size.
Height: 5.5”
Width: 11.5”
Depth: 13”
