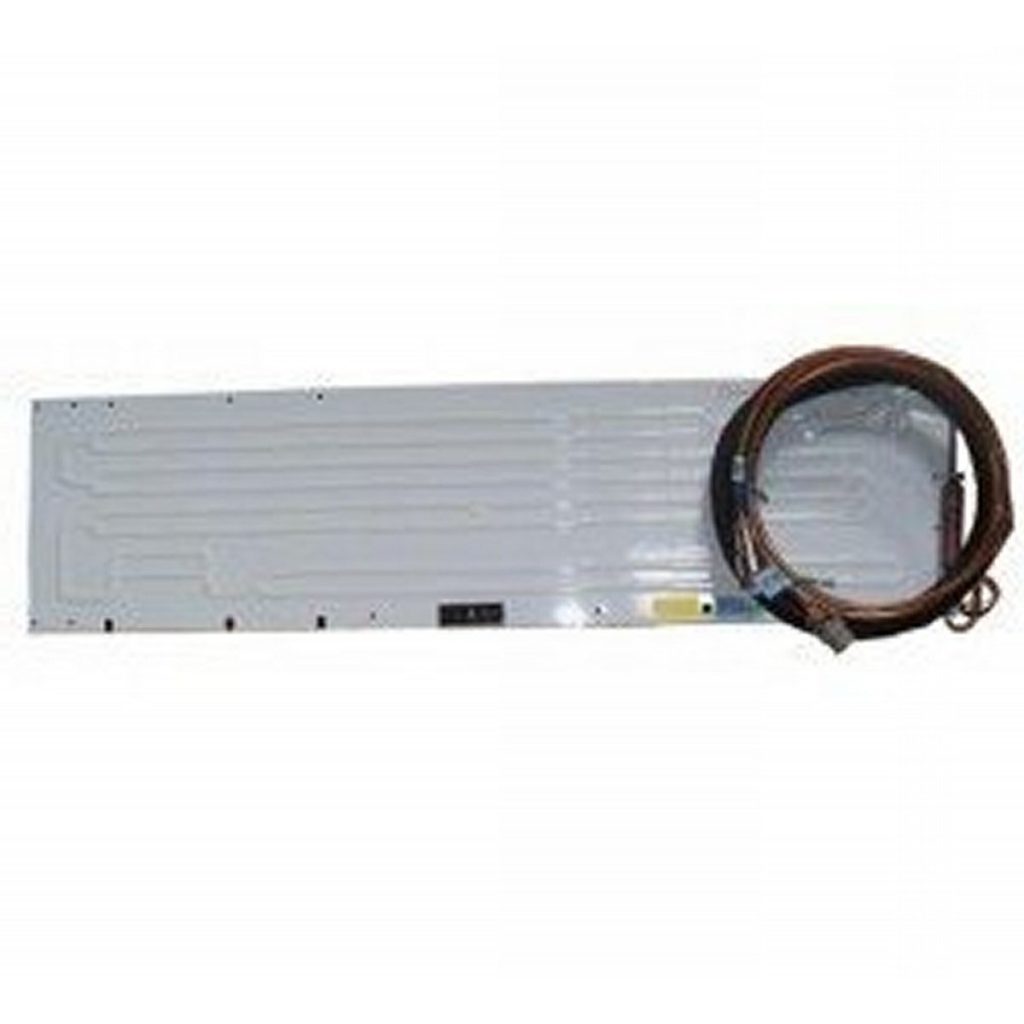

Frigoboat Flat Evaporator 200F
#E50075
Frigoboat All aluminum, Bendable Evaporator 200F
Well suited for refrigerator boxes of 10-18 cubic feet or freezer boxes of 5-8 cubic feet.
These measurements based on the box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
This plate can be easily bent to fit into your box. Instructions provided.
Dimensions 42″w x 10.5″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.
Frigoboat Flat Evaporator 160F
#E50095
Frigoboat All aluminum, Flat, Bendable Evaporator 160F
Well suited for refrigerator boxes of 5-10 cubic feet or freezer boxes of 2-5 cubic feet.
These measurements based on the box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
This plate can be easily bent to fit into your box. Instructions provided.
Dimensions 31,75″w x 8.25″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

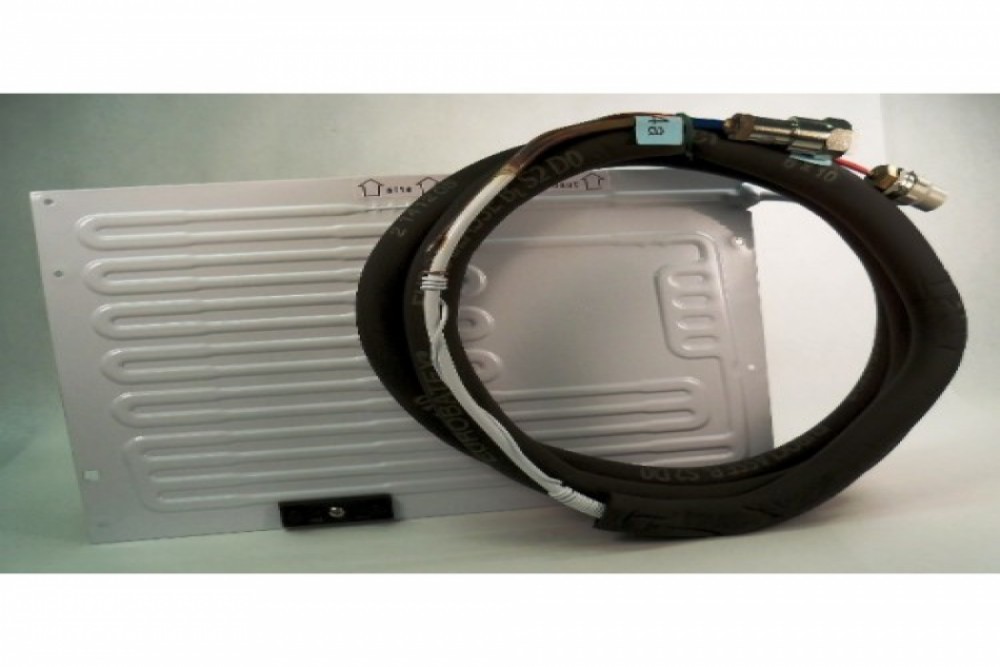

Frigoboat Flat Evaporator 80F
#E50883
Frigoboat All aluminum, Flat, Bendable Evaporator 80F
Well suited for refrigerator boxes up to 3 cubic feet.
Measurements based on the box having good insulation, 3-4″ for refrigerator boxes.
Dimensions 13″”w x 9.5″”h
This plate can be easily bent to fit into your box. Instructions provided.
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

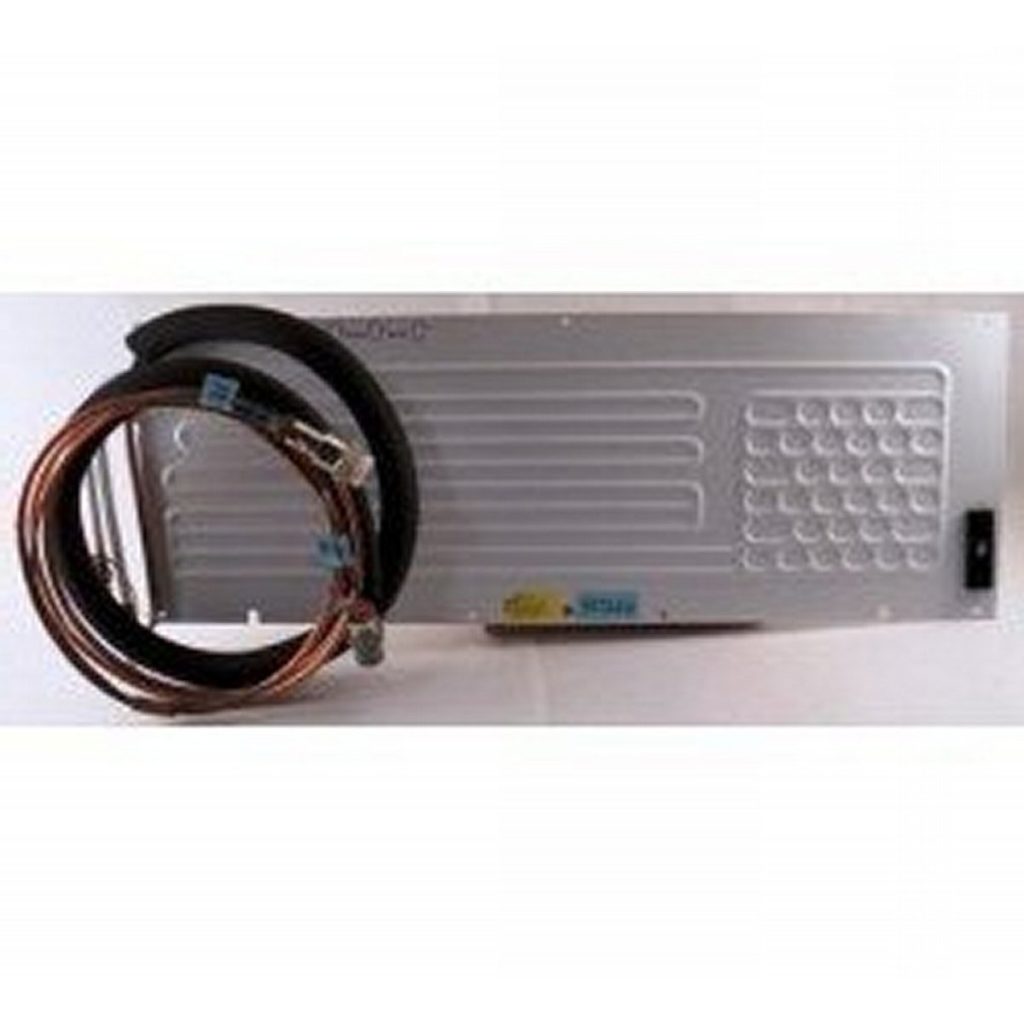

Frigoboat Flat Evaporator 130F
#E50085
Frigoboat All aluminum, Flat, Bendable Evaporator 130F.
Well suited for refrigerator boxes up to 5 cubic feet or freezer boxes up to 2.5 cubic feet.
These measurements based on the box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
Dimensions 23.25″w x 8.25″h,
This plate can be easily bent to fit into your box. Instructions provided.
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

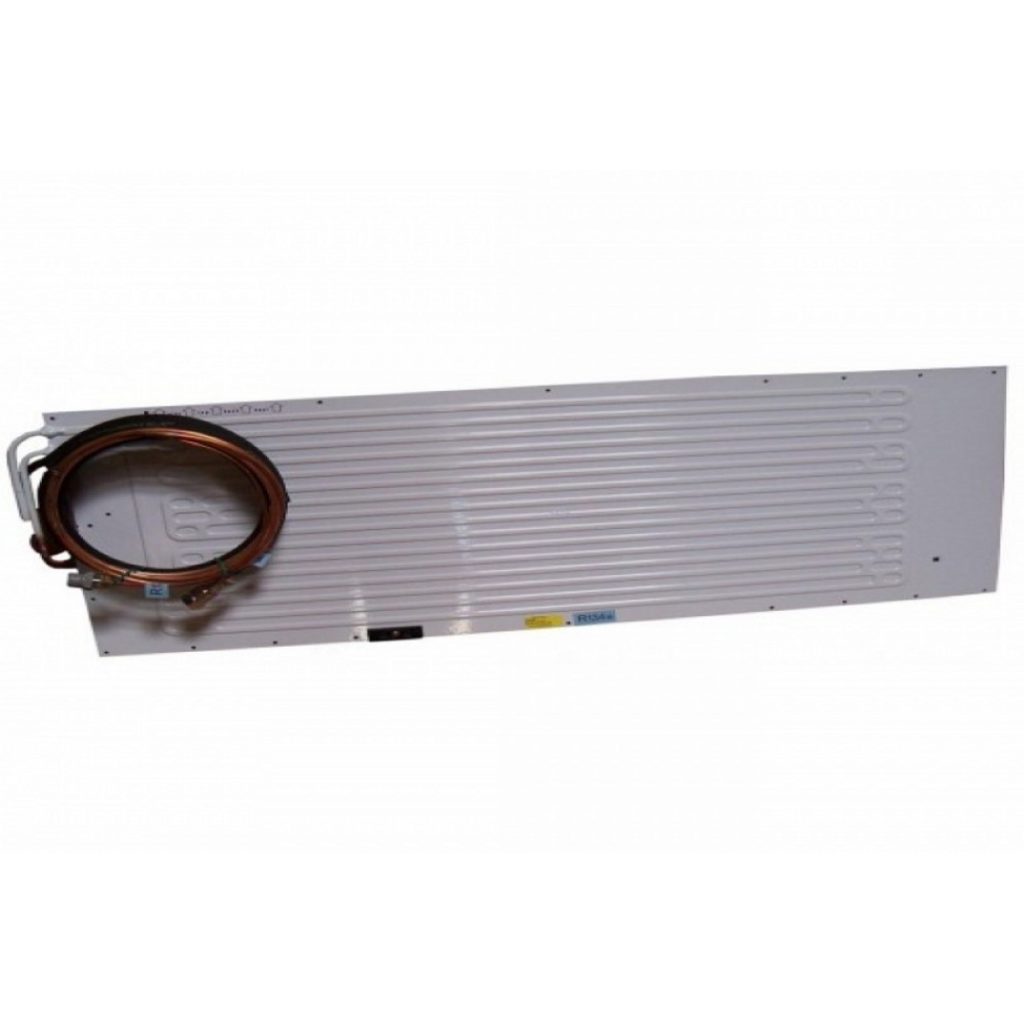

Frigoboat Flat Evaporator 380F
#E52225
Frigoboat, All aluminum, Flat, Bendable Evaporator 380F
Well suited for refrigerator boxes of 10-20 cubic feet or freezer boxes of 5-10 cubic feet.
These measurements based on the box having good insulation, 3-4″ for refrigerator boxes, 5-6″ for freezer boxes.
This plate can be easily bent to fit into your box. Instructions provided.
Dimensions 39,2″w x 14,5″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

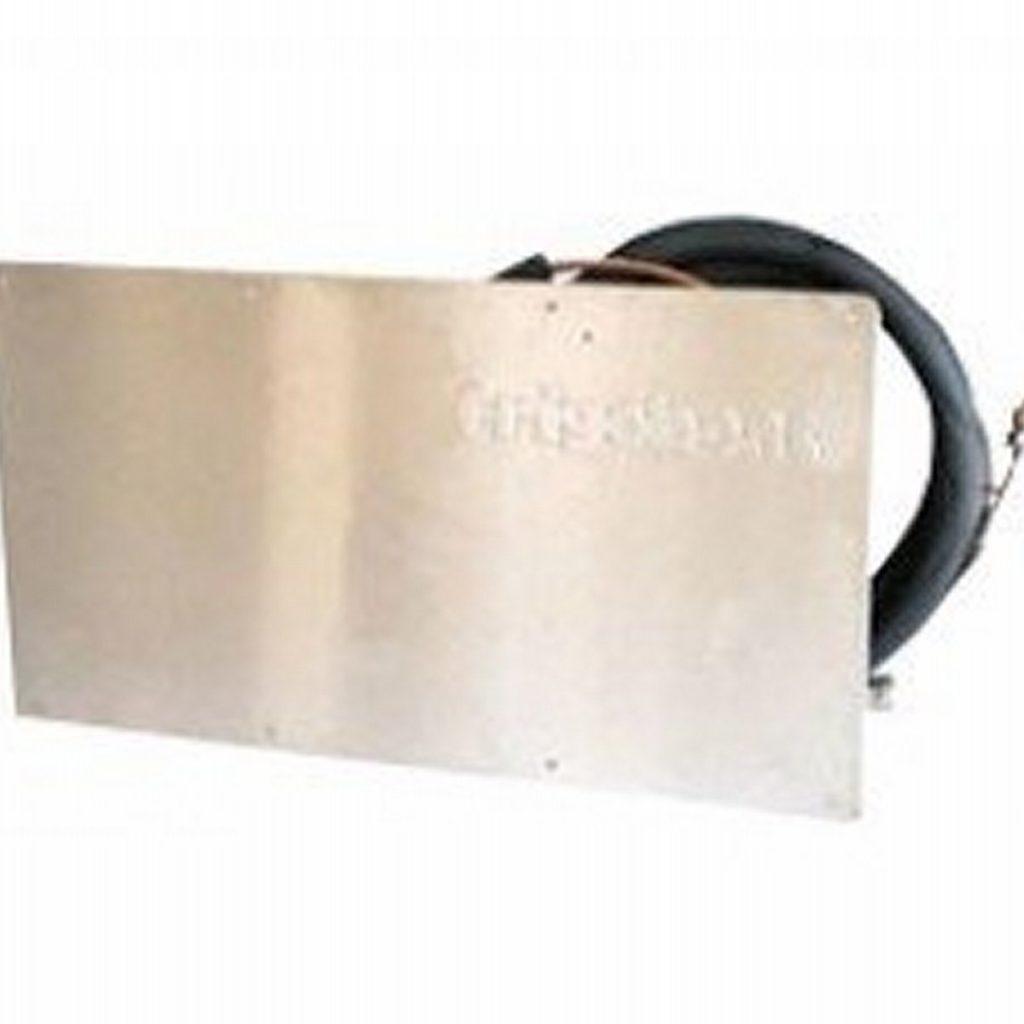

Frigoboat Flat Evaporator 180F-SS
#E52105
Frigoboat, All aluminum with Stainless Steel Cover, Flat, Bendable Evaporator 180F
Well suited for refrigerator boxes of 5-10 cubic feet.
Ideal plate for a refrigerator application where hard objects, like drink cans, could dent the aluminum refrigerant channels.
Not suggested for freezer applications.
These measurements based on the box having good insulation, 3-4″.
Dimensions 22″w x 12″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

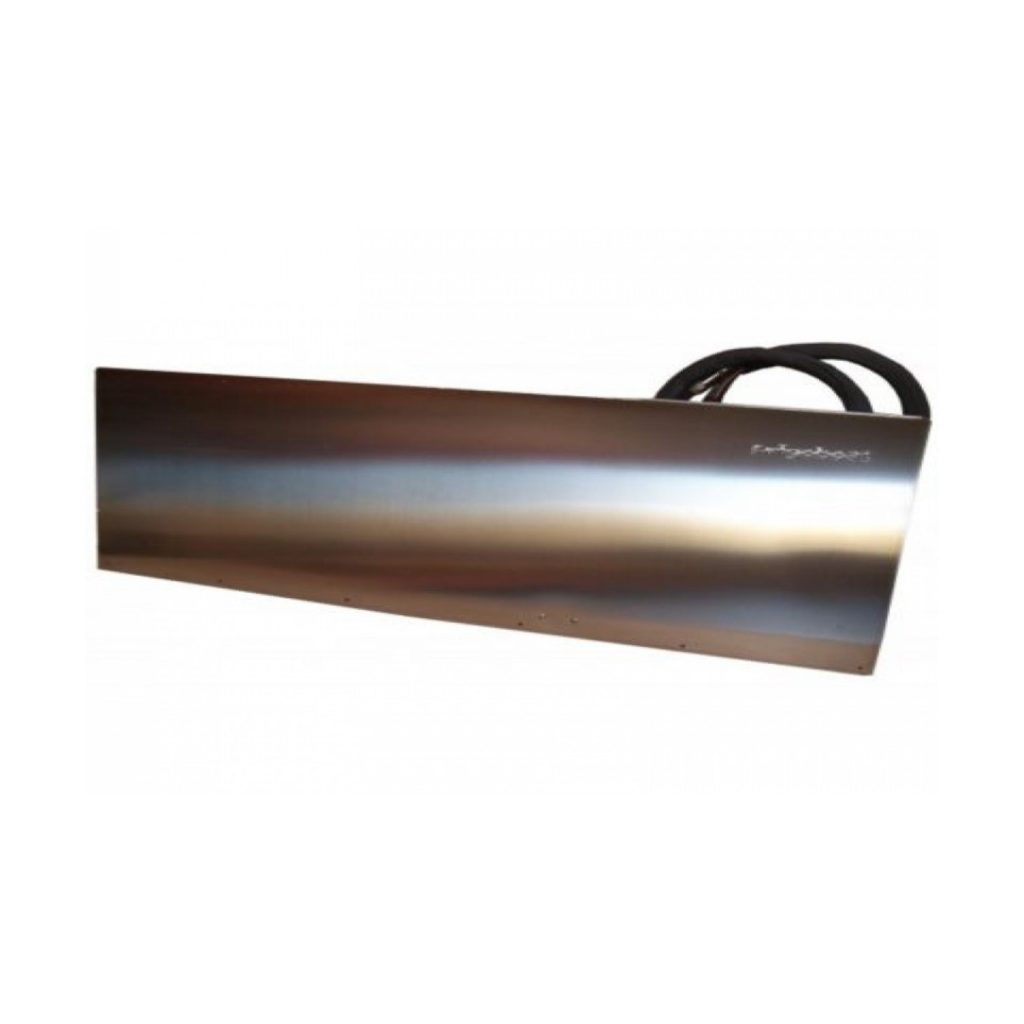

Frigoboat Flat Evaporator 380F-SS
#E52185
Frigoboat, All aluminum with Stainless Steel Cover, Flat, Bendable Evaporator 380F
Well suited for refrigerator boxes of 10-15 cubic feet.
Ideal plate for a refrigerator application where hard objects, like drink cans, could dent the aluminum refrigerant channels. Not suggested for freezer applications.
These measurements based on the box having good insulation, 3-4″.
Dimensions 41.3″w x 16″h
Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.
