Swedish Marine - Refrigeration, Heating, Electrical

#E50065

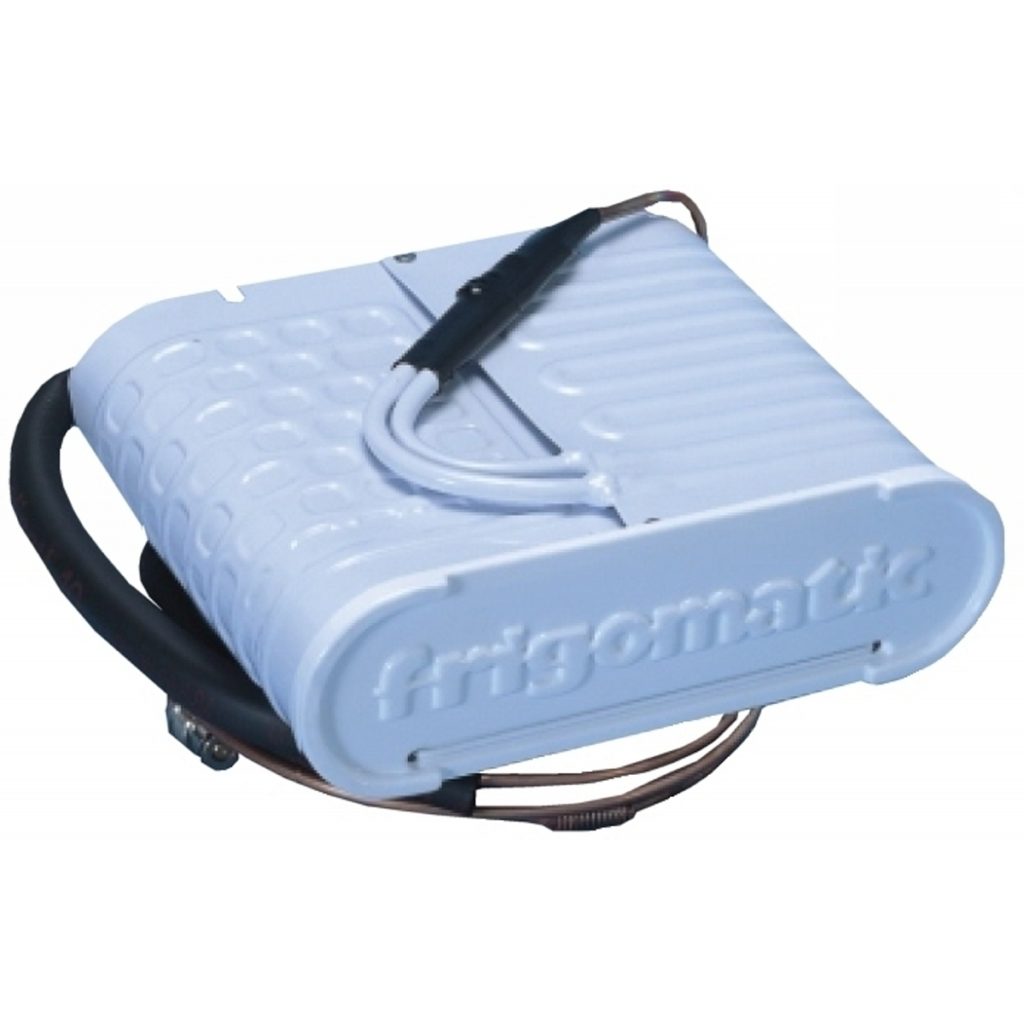

Frigoboat Horizontal Evaporator 130H with door.

Designed for refrigerator boxes up to 5 cubic feet.

Provides both refrigeration and a small area inside the fully bent evaporator plate for freezing.

Mounting is horizontal.

Small door keeps the cold inside the bent plate area.

These measurements based on the box having good insulation, 3-4″ for refrigerator boxes.

Dimensions 10″w x 2.75″h x 8.5″d, Vertical bin

Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

#E50090

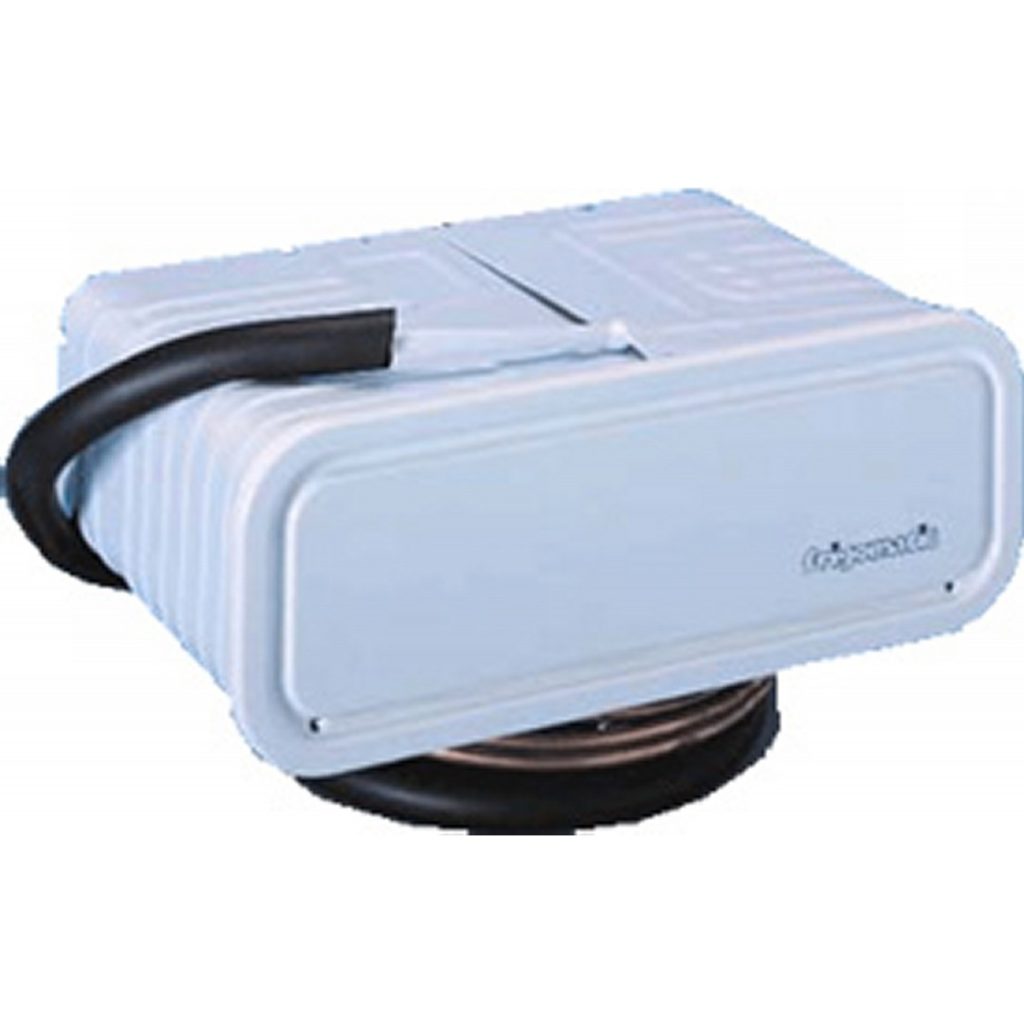

Frigoboat Horizontal Evaporator 160H with door.

Designed for refrigerator boxes up to 5-10 cubic feet.

Provides both refrigeration and an area inside the fully bent evaporator plate for freezing.

Mounting is horizontal.

Small door keeps the cold inside the bent plate area.

These measurements based on the box having good insulation, 3-4″ for refrigerator boxes.

Dimensions 12.5″w x 4.5″h x 8.5″d,

Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

#E53335H

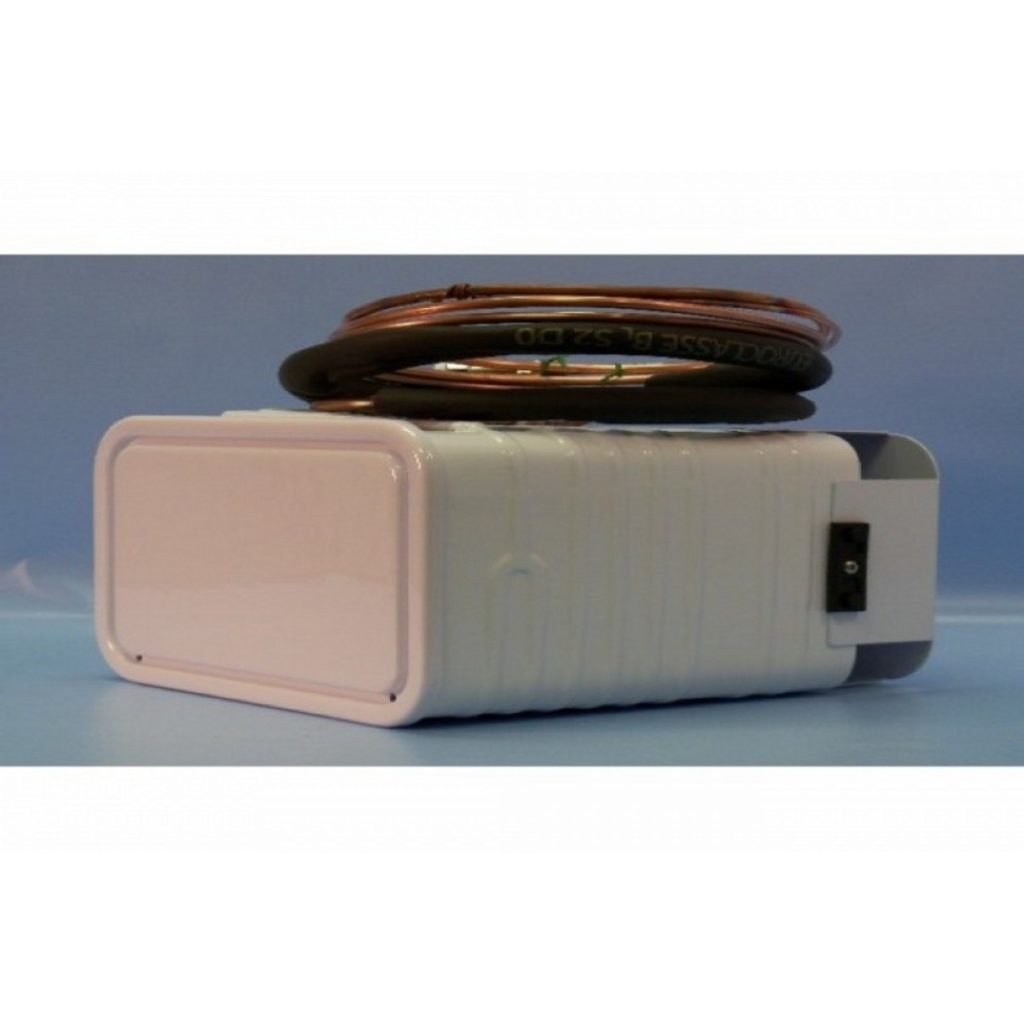

Frigoboat Horizontal Evaporator 250H with door.

Designed for refrigerator boxes up to 5-10 cubic feet.

Provides both refrigeration and an area inside the fully bent evaporator plate for freezing.

Bin mounted horizontal with door added.

Small door keeps the cold inside the bent plate area.

These measurements based on the box having good insulation, 3-4″ for refrigerator boxes.

Dimensions 10″w x 6.5″h x 10.2″d

Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.

#E50105H

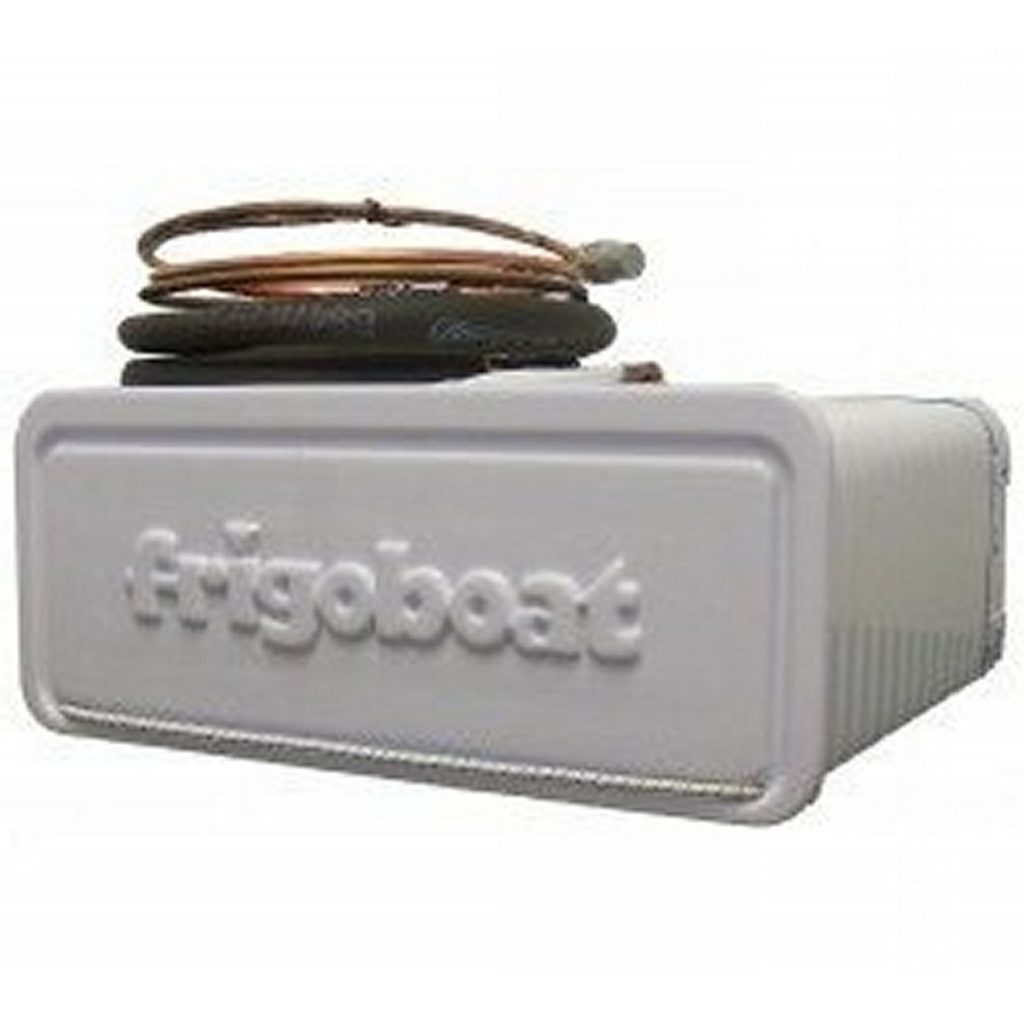

Frigoboat Horizontal Evaporator 340H with door.

Designed for refrigerator boxes of 10-15 cubic feet.

Provides both refrigeration and an area inside the fully bent evaporator plate for freezing.

Bin mounted horizontal with door added.

Small door keeps the cold inside the bent plate area.

These measurements based on the box having good insulation, 3-4″ for refrigerator boxes.

Dimensions 15″w x 6″h x 11.5″d

Copper tubing from plate is about 9 feet. Extensions available in 3′, 6′, and 9′ lengths, available separately for suction and liquid sides.
